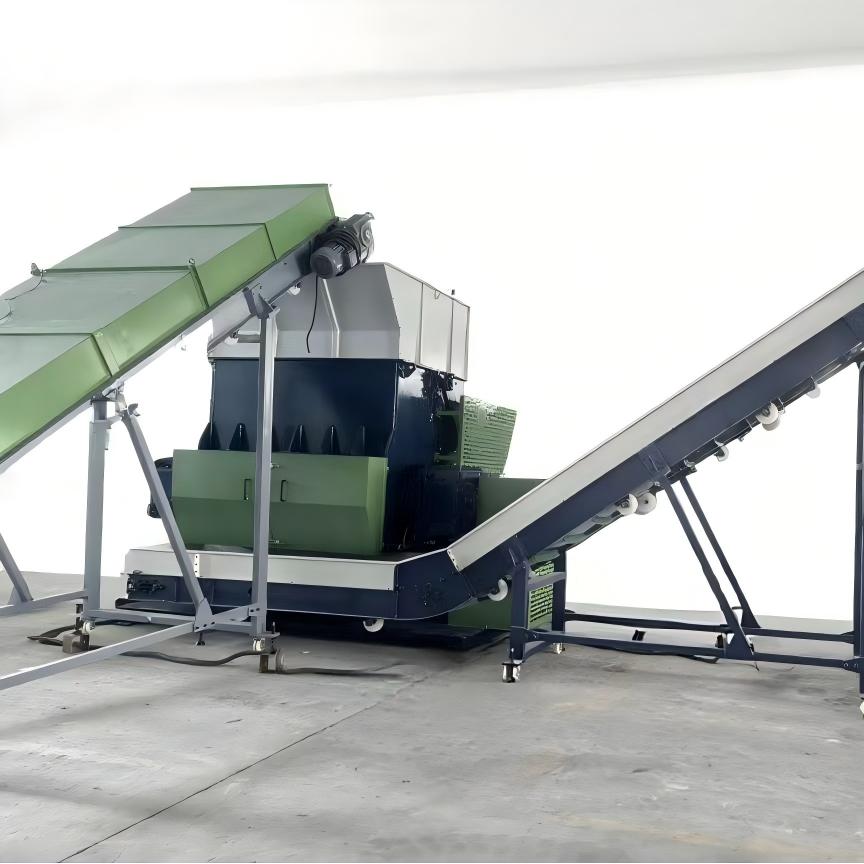

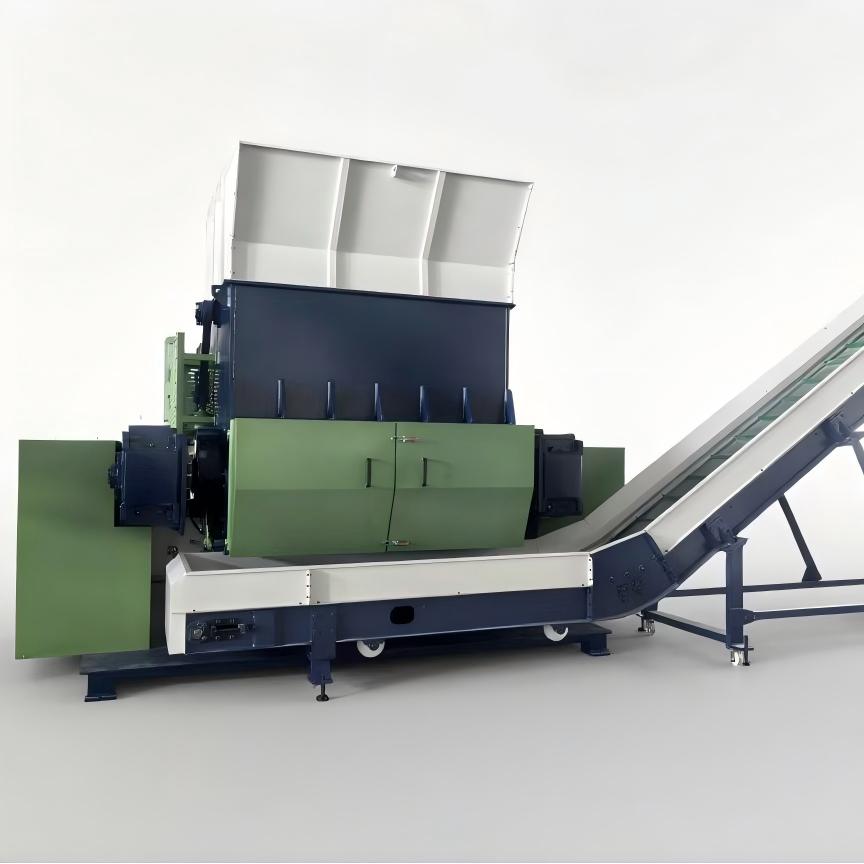

Plastic single shaft shredder big capacity with horizontal pusher for shredding PP and PE films and rolls
Single shaft shredder for PP PE films and film rolls and PP woven bags and ton bags
The single shaft shredder work as a auxiliary machine for the plastic pelletizing, plastic washing line recycling system. The single shaft shredder's function is to reduce the raw materials sizes. For example the single shaft shredder could shred the plastics like PET fiber, PP woven bags ton bags and PP nonwoven bags, PE agriculture films processing, we need the single shaft to reduce their sizes. After reducing the sizes, the raw materials PP PE etc will be easily processed in the down stream, either washed or pelletized. It can be used in Plastic bags, packaging films, agricultural mulch, and other flexible waste.
Single shaft shredder features as below:
- The blades type: D2 material,with long service. With 4 blades edges to change direction. It is made with the NC machine.
- The blade frame is W type arrangement, to make the machine run more stable.
- Screen adopt the strip type, to make sure the raw material output more smooth. It adopt the hydraulic to change,easy to operate.
- Easy to maintain.
- Soft milling grinding, low noise, low energy consumption and uniform grinding particle size.
- Local best and welknow gearbox brand. Dongli or Guomao.
- Good electric parts international good brand, like Schneider, Siemens
- Easy to operate and maintain.
- Compact & Space-Saving
- Simple structure with a smaller footprint, ideal for limited workspaces.
- Cost-Effective
- Lower initial investment and maintenance costs compared to multi-shaft shredders.
- Energy Efficient
- Consumes less power while maintaining stable shredding performance.
- Easy Maintenance
- Fewer moving parts reduce wear and simplify blade replacement/cleaning.
- Adaptable to Thin Films
- Effectively shreds soft plastics (e.g., PE, PP films) without clogging.
- Quiet Operation
- Generates lower noise levels than dual-shaft models, suitable for indoor use.
- Customizable Output Size
- Adjustable screen mesh controls shredded material dimensions.
Technical parameter:
| ModelTechnical | 850 | 1050 | 2000 |
| Rotor rotary diameter(mm) | 400 | 400 | 540 |
| Motor power(kW) | 45/55 | 55/75 | 90kW*2 |
| Speed(rpm) | 83 | 83 | 83 |
| Rotary blades quantity(pcs) | 40 | 70 | 115 |
| Fixed blades quantity(pcs) | 2 | 2 | 5 |
| Screen hole diameter(mm) | 60-100 | 60-100 | 60-80 |
| Push power(kW) | 4 | 5.5 | 5.5 |
| Weight(kgs) | 4300 | 5800 | 14000 |
| Capacity(kg/h) | 500-70 | 800-1000 | 2000-3000 |
For any enquiry, please contact us freely.
Contact person:Aileen.he@puruien.com
Email: aileen.he@puruien.com
Mobile:0086 15602292676(whatsapp and wechat)
A plastic recycling and granulating machine is a type of equipment used to recycle plastic waste into granules or pellets that can be reused in manufacturing new plastic products. The machine typically works by shredding or grinding the plastic waste into small pieces, then melting and extruding it through a die to form pellets or granules.
There are different types of plastic recycling and granulating machines available, including single-screw and twin-screw extruders. Some machines also include additional features such as screens to remove impurities from the plastic waste or cooling systems to ensure the pellets are solidified properly. PET bottle washing machine, PP woven bags washing line
Plastic recycling and granulating machines are commonly used in industries that generate large amounts of plastic waste, such as packaging, automotive, and construction. By recycling plastic waste, these machines help reduce the environmental impact of plastic disposal and conserve resources by reusing materials that would otherwise be discarded.
