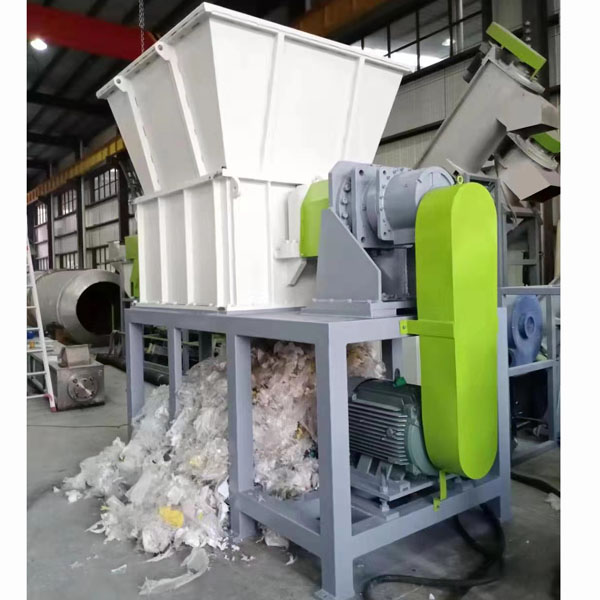

Preshredder for the PE agriculture films agriculture irrigating tape and PP woven bags
Preshredder for PE agriculture films irrigation tape and PP woven bags
The function of the preshredder is to preshred the agriculture films like LDPE films etc. Even though the agriculture films are with 30-70% sand or dust, the preshredder could process without any problem. The greenhouse films can be also processed by the preshredder.
Picture for the ariculture mulchs and greenhouse films
The plastic washing line features in the large capacity and stable working. The capacity can reach 1500-2000kg/h and 2000-3000kg/h. Below is the technical table for your reference.
| Model | YPSJ1000 | YPSJ1500 | Remarks |
| Capacity | 1500-2000kg/h | 2000-3000kg/h | |
| Rotary blades | 36 pieces | 28 pieces | Will change according to material |
| Fixed blades | Long 18 pieces,short 4 pieces | Long 14 pieces,short 4 pieces | Will change according to material |
| Motor power | 75-90kW | 90-110kW | |
| Shredder house size | 3100*1800*2120mm | 4100*1900*3120mm | |
| Main shaft rotation speed | 10-20 | 10-20 | |
| Weight | 5500kgs | 7500kgs |

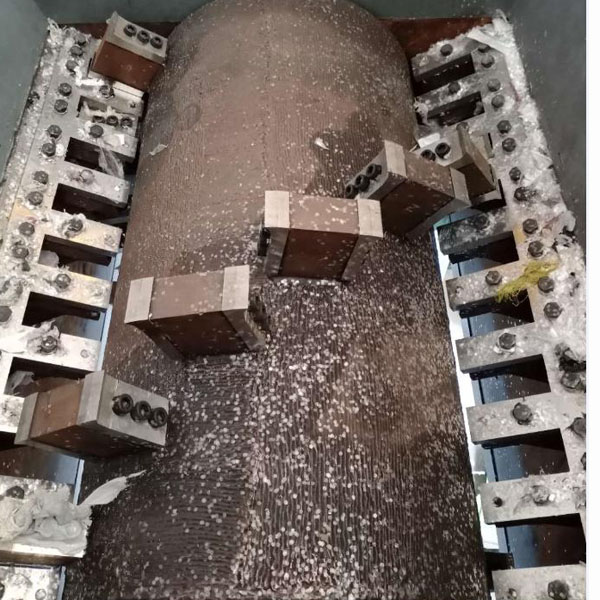

The principle of the preshredder machine is with the working of the rotary blades mounted on the shaft and fixed blades to shred the raw materials PE films into pieces. The final films scraps will be around 100-200mm. With large feeding mouth and the high torque shaft rotation, the processing capacity could reach 2000kg - 300kg/h. It will largely reduce the dowm stream processing strength. Before feeding the baled or loose films, should check if there is big metals and big stones get into the shredder. To guarantee the shredder work well, we need get rid of the big metals and big stones. After shredder, the raw material could be transfered to the rotation drum screen to further remove the small stones and dust and sand. It will largely reduce the sand and stones to relief the down stream work load.
The preshredder perform well in our plastic ariculture films washing line in Yunnan province, China and Japan factory.
Below is the youtube link for the running videos:
We has been in the plastic recycling industry for more than 16 years with much experience and advanced technology. We will continue to offer the best service and products for our customers all over the world.
For any enquiry, please contact us freely.
Contact person:Aileen.he@puruien.com
Email: aileen.he@puruien.com
Mobile:0086 15602292676(whatsapp and wechat)
A plastic recycling and granulating machine is a type of equipment used to recycle plastic waste into granules or pellets that can be reused in manufacturing new plastic products. The machine typically works by shredding or grinding the plastic waste into small pieces, then melting and extruding it through a die to form pellets or granules.
There are different types of plastic recycling and granulating machines available, including single-screw and twin-screw extruders. Some machines also include additional features such as screens to remove impurities from the plastic waste or cooling systems to ensure the pellets are solidified properly. PET bottle washing machine, PP woven bags washing line
Plastic recycling and granulating machines are commonly used in industries that generate large amounts of plastic waste, such as packaging, automotive, and construction. By recycling plastic waste, these machines help reduce the environmental impact of plastic disposal and conserve resources by reusing materials that would otherwise be discarded.
Lithium battery recycling equipment is a type of equipment used to recycle and recover valuable materials from lithium-ion batteries, which are commonly used in electronic devices such as smartphones, laptops, and electric vehicles. The equipment typically works by breaking down the batteries into their constituent parts, such as the cathode and anode materials, electrolyte solution, and metal foils, and then separating and purifying these materials for reuse.
There are different types of lithium battery recycling equipment available, including pyrometallurgical processes, hydrometallurgical processes, and mechanical processes. Pyrometallurgical processes involve high-temperature processing of the batteries to recover metals such as copper, nickel, and cobalt. Hydrometallurgical processes use chemical solutions to dissolve the battery components and recover metals, while mechanical processes involve shredding and milling the batteries to separate the materials.
Lithium battery recycling equipment is important for reducing the environmental impact of battery disposal and conserving resources by recovering valuable metals and materials that can be reused in new batteries or other products.
In addition to environmental and resource conservation benefits, lithium battery recycling equipment also has economic benefits. Recovering valuable metals and materials from used batteries can reduce the cost of producing new batteries, as well as create new revenue streams for companies involved in the recycling process.
Furthermore, the increasing demand for electric vehicles and other electronic devices is driving the need for a more efficient and sustainable battery recycling industry. Lithium battery recycling equipment can help meet this demand by providing a reliable and cost-effective way to recover valuable materials from used batteries.
However, it’s important to note that lithium battery recycling is still a relatively new industry, and there are challenges to overcome in terms of developing efficient and cost-effective recycling processes. Additionally, proper handling and disposal of battery waste is crucial to avoid environmental and health hazards. Therefore, proper regulations and safety measures must be in place to ensure the responsible handling and recycling of lithium batteries.
